  • The Reliance Form work system consists of all steel economy panels. These are available in a combination of sizes from 75mm to 600mm wide and 900mm to 3000mm long. Special sizes can also be made to order.

  • The panels are joined by wedge sets which are inserted through slots in the punched flat which forms the edge of the panel.

  • The panels are aligned by either tube or channel walers which are clamped to the panels with "B" or "C" clamps.

  • For heavyduty concrete work soldiers are used. The panels are then gangformed and crane handled.

  • The panels are tied together to form parallel faces using UniSpan's proprietary tie systems.

Various Form work manufactured by Reliance scaffolding are as follow

Wall Form Economy panel - Wall Form Economy panel  manufacturer india | Wall Form Economy panel  supplier india | Wall Form Economy panel  exporters india | Best Wall Form Economy panel  india
  • Economy panels are today's most advanced multi-purposed formwork system because:

  • Stiffeners are built into the panel, therefore only two scaffold tube or channel wafers are required for alignment.

  • Minimum champs required.

  • Rapid assembly with wedge sets

  • Can easily be erected by unskilled labour.

  • Accommodates any tie system.

  • Durable steel face plate cannot be damaged by vibrators or penetrated by the reinforcing steel.

  • The automatic precision on assembly results in 100% dimensional accuracy of the finished concrete.

Ask for Quick Quote Top

Purpose Made Form-Work-Crash-Barrier
Purpose Made Formwork For Pier Cap
Channel Soldier
Picture##



Wall forms and channel soldiers of 45*45*5mm are manufactured out of M.S slotted angles and 12g M.S sheets to make them rigid and strong. Curvature of wailing tubes are changed to suit profiles of different diameter shells.

Ask for Quick Quote Top


Heavy Duty Soldiers Heavy Duty Soldiers Heavy Duty Soldiers Heavy Duty Soldiers
Heavy Duty Soldiers

Conventional Wallform Shuttering Water Stopper - With Disc/Without Disc

Wall Form ShutteringConsists of wallform panels made out of 12 gauge Sheet and M.S. Angel/Flat Frame, channel/ Heavy Duty Soldiers, Tubular/Channel walers & accessories. Panels supplied in 1.25m & Soldiers in 2.5m heights. For curved walls flexible panes are used, and heavy duty soldiers to be used in place of channel soldiers for single sided shuttering.

Double Adjuster Panel, Splay Panel, inter Corner Panel, External Corner Angle and Lap Angle etc., as also wallform accessories like Single clip, Double clip, Bridge clip, Assembly bolt and wedge / clip etc. are used for various applications of conventional wallform shuttering.

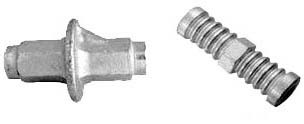

Water stopper

SIE water stopper is compatible with 17mm tie rods, for achieving water tight ties.Water stoppers are made from high quality casting and have a plastic caps at both ends, special feature is an additional surrounding disc for better Anchoring and further security against penetrating water. SIE water stoppers are optimal choice for contractors.

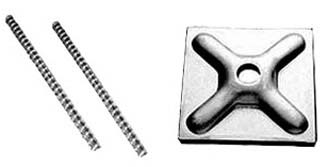

Tie Rod and Waller Plate/Counter Plates Wing Nut and Anchor Nut
tie rod

SIE Counter Plate for typical tie bar application with wing nuts and tie rods. Reinforced design, made from steel. waller plates/Counter Plates are for use both with timber and steel framework. waller plates/Counter Plates are of square dimensions of 120x120mm, an opening hole to pass through tie rods and additional mailing holes for timber framework if required. waller plates/Counter Plates are available with or without galvanizing.

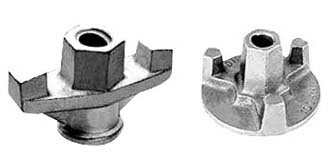

wing nut anchor nut

Knock�on wing nuts with two wings, compatible with tie rods. Wing Nuts are a typical component of the Tie bar system and are suitable for both timber and steel from work, when waller plates/Counter Plates are used. Zinc plated for rust protection. Available in our different designs with and without flange, with one or two wings.

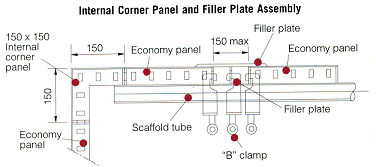

INTERNAL CORNER PANEL (ICP)

FILLER PLATE

ICP's come in a full range of lengths forming internal corner between a drop beam and slab soffit as well as vertical corers.
Filler plates fill in gaps when using non-standard modules and facilitate stripping in confined areas.

Ask for Quick Quote Top

Clamps - Formwork clamps are used with mild steel rods and provide a cheap, effective clamping system that has no nuts or bolts and leaves no expensive ties in the concrete. Available in blue painted, galvanized or rough finish. The wedge of the clamp is available with heat treatment also for long life.  Click here for compete range of clamps
